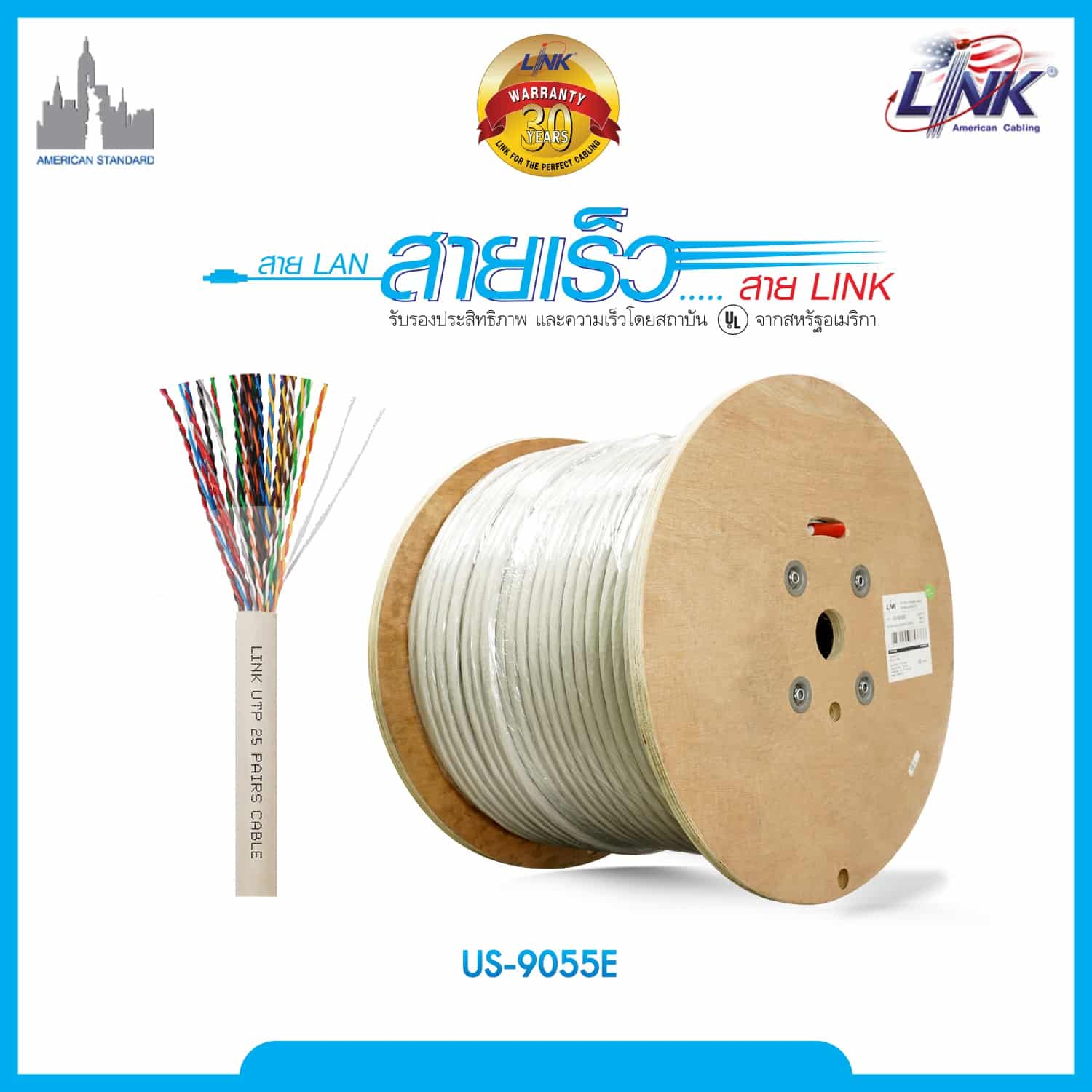

Description

STANDARD
ANSI/TIA-568.2-D Category 5E
ISO/IEC 11801:2017 Class D
EN 50173-1 Category 5E
ICEA S-90-661 Category 5E
EN 50288-3-1, EN 50288-3-2, NEMA WC 63.1
IEC 61156-5, ASTM D4566-98, IEC 60332-1-2
UL Listed CM, CMR, CMP and LSZH
ETL and 3P Verified to Category 5E
UL E197771, INTERTEK, RoHS Compliant

APPLICATION
Structure cabling for horizontal and building backbone
2.5G BASE-T (IEEE 802.3bz)
10/100/1000 BASE-T (IEEE 802.3i/u/ab)
IEEE 802.3af/at (PoE/PoE+)
52/155/622 Mbps and 1.2 Gbps ATM
4/16 Mbps Token Ring
TP-PMD, TPDDI, ISDN, CDDI, VolP
HD BaseT 2.0 standard, Baseband, Broadband
Digital & Analog for data, video and audio application

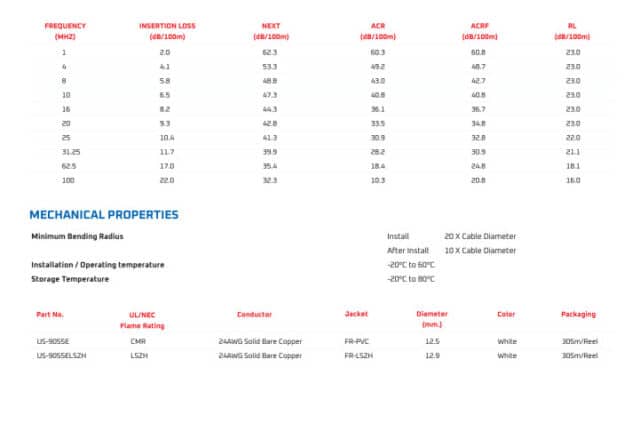

ELECTRICAL CHARACTERSTICS
Impedance
Mutual Capacitance
Capacitance, Unbalance
DC Resistance
DC Resistance.Unbalance
Insulated Resistance
Dielectric Strength
Propagation Delay
Delay Skew
:5.6 nFMax/100m
: 160 pF Max/ 100m

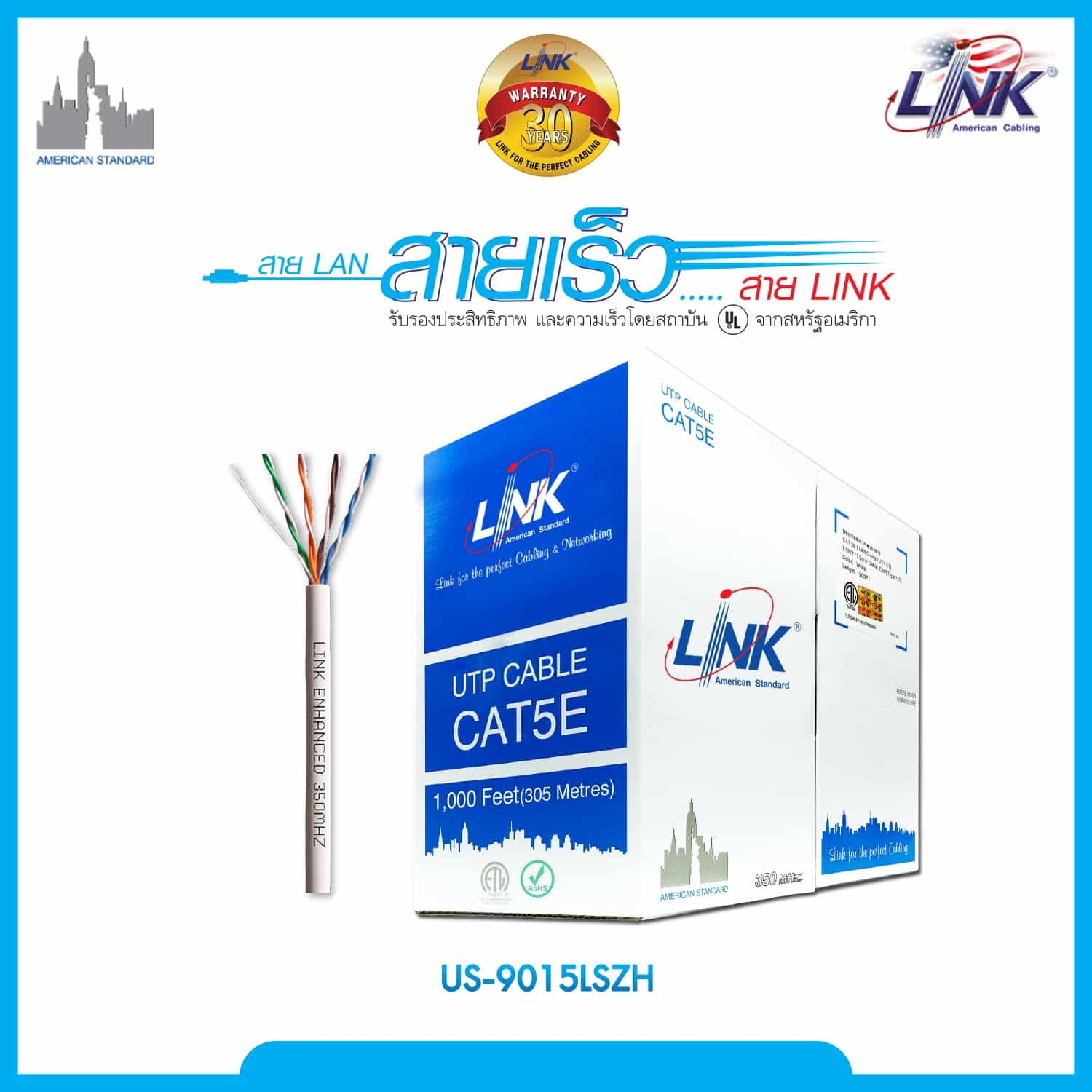

LINK ENHANCED 350MHZ
CONSTRUCTION/ MATERIAL
100±150, 1 MHz to 350 MHz Conductor 24AWG Solid or Stranded Bare copper
Insulation CM, CMR, LSZH: HDPE
CMP : FEP
Ripcord : Under Jacket
Jacket CM, CMR: FR-PVC
CMP: FR-PVC (Low Smoke)
LSZH: FR-LSZH
9.38 ohm Max/100m
5% Max.
5000 ΜΩ/Km
: 1kV/min
536 ns/100m Max @350MHz
25 ns Max
